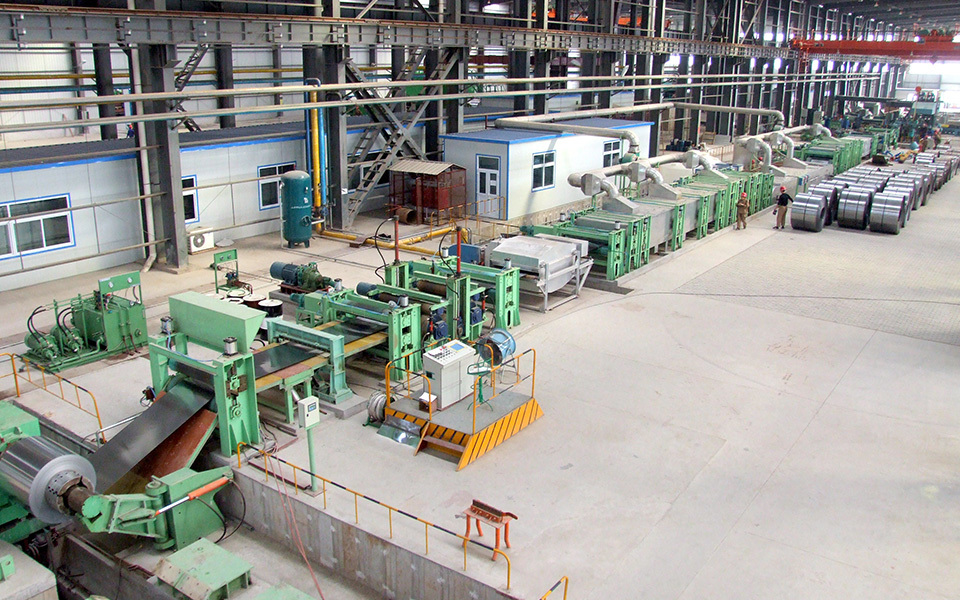

Electrolytic Degreasing Line

Degreasing line is used to remove rolling oil, residual iron and other pollutants in order to control residual carbon and iron effectively; meanwhile the line can prevent the defects such as strip adhesion during annealing process. The strip after degreasing can be used as the raw material for food-grade electrolytic tinplates.

Home

Electrolytic degreasing technology means that immersing the steel strip in certain electrolyte to perform electrolytic treatment under polarity-reversing direct current to remove the grease on the strip.

Process Flow

Hot laminating process, printing process and embossing process can be added to the CCL

Uncoiling

Pinching

Multi-roll Straightening

Shearing

2-rolls Pinching

Welding

Bridling

Chemical degreasing

Brushing

Electrolytic degreasing

Multi-rinsing section

Hot air drying

Bridling

Shearing

Recoiling

Process Parameter

Raw Material	Thickness	Width	Coil Weight	Line Speed	Energy
Plain carbon steel, low alloy steel	0.2~2.5 mm	300~1500mm	Max. 25 ton	Max. 450m/min	Electricity, steam

Chemical Degreasing Line

Chemical degreasing is a process in which the grease on the strip is removed through saponification and emulsification of alkali solution or surfactant.

Chemical Degreasing Line
